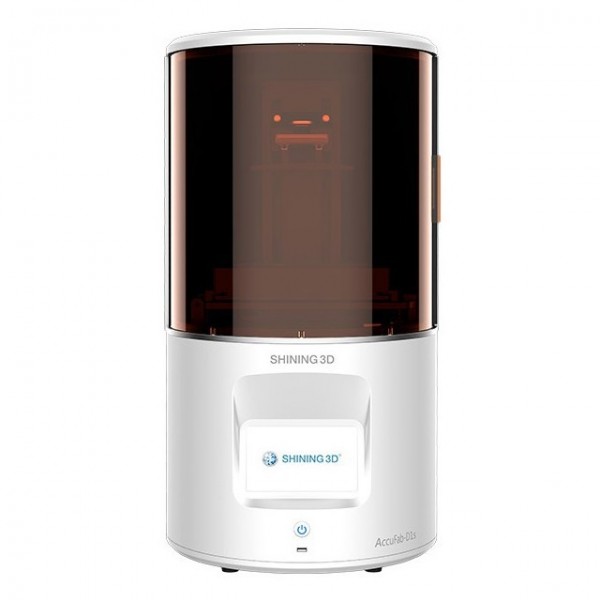

AccuFab-D1s - Dental 3D Printer
- . Fast Print Speed
- . Ultra High Accuracy and Details
- . Intelligent Print
- . Long Lifetime and Low Cost
Based on years of experience in dental industry, the upgraded AccuFab-D1s offers users a more intuitive and user-friendly workflow with even faster print speed and better accuracy.
With diverse resin material options, it can meet diverse demands in restorative, implant and orthodontic applications.
This is the ideal printer solution for all dental customers wishing to enter into the era of digital production.

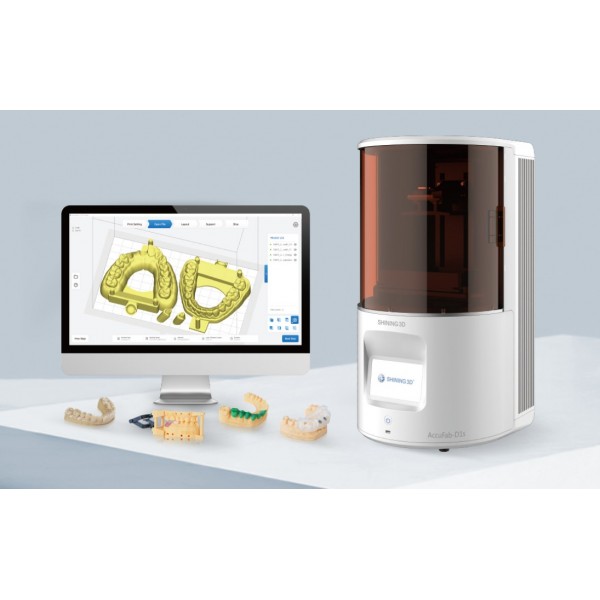

The Shining 3D AccuFab-D1s is a revolutionary 3D printer specifically designed for dental applications, incorporating innovative technology, user-friendly, and remarkable fast printing capabilities.
With its ability to deliver exceptional print quality at a rapid speed, it allows professionals to efficiently create intricate and precise models, making it an ideal choice for dental professionals requiring both speed and precision.
TECHNICAL SPECIFICATIONS
| Dimension |
396 mm * 406 mm * 755 mm |
| Weight |
30 kg |
| Build Envelope |
144 mm * 81 mm * 160 mm |
| Print Speed |
50 mm / h* |
| Print Accuracy |
±35 μm |
| Layer Thickness |
25 μm, 50 μm, 100 μm |
| DLP Native Resolution |
1920 x 1080, 1080 p |
| Material Option |
Open |
| Interface |
USB / Ethernet / Wi-Fi |
FAB CURE
| Dimension |
200 mm * 200 mm * 325 mm |
| Weight |
6 kg |
| Turntable Diameter |
165 mm |
| Maximum Part Height |
160 mm |
| Operating Temperature |
10 ~ 30 ℃ |
| Power |
DC24 V, 2.5 A, 60 W |
| Light Source |
UV LED |
| Wavelength |
405 nm |
| LED Power |
30 mw / cm² |
* The print speed varies and is directly related to the different types of materials or layer thickness.
** Measured by a certain method under certain environment.
*** Notice:SHINING 3D reserves the right to introduce modifications or alterations to any of the specifications and images used in this document.
WARRANTY PLANS & POLICY – DENTAL PRODUCTS
Please read Shining 3D Warranty Plan - Click here!
**No Returns**
