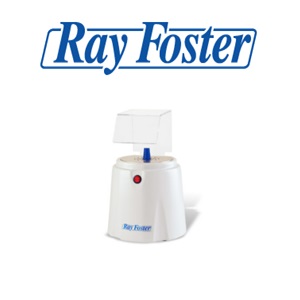

Ray Foster Model Arch Trimmer

<p>Fast and easy removal of the arch or palate areas of gypsum and stone models is accomplished with Ray Foster Model Arch Trimmer and SaburTooth Carbide Burs.</p> <h4>Model MR20<br /> Model Arch Trimmer</h4> <h5>Features</h5> <ul> <li><span>Large, stainless steel work surface with generous venting for dust removal</span></li> <li>1-1/2” (38mm) hose connection, connects directly to 1-1/2” vacuum hose, no need for adaptors</li> <li>Power output connection for automatic on/off of dust collector</li> <li>Safety switch disconnects power when top is removed</li> <li>Comes with fast cutting, non-clogging, <strong><span>SaburTooth Carbide Burs</span></strong>, one cylinder and one taper, course grit</li> <li>Complete trimming system available by ordering with CDC1 Cyclone Dust Collector, order item MR20C</li> </ul> <h5>Specifications</h5> <ul> <li>Diameter 9" at base</li> <li>Height to work surface 8-1/4” (210mm)</li> <li>Overall height w/safety shield 13” (330mm)</li> <li>Net weight 10-1/2 lb (4-3/4 kg) Shipping weight 12 lb (5-1/2kg)</li> <li>115 volt, 60 Hz standard</li> <li>230 volt, 50/60 Hz optional for export</li> </ul>
